Rowenta X-Clean 4 Cordless Floor Washer

1. Introduction and Product Overview

The Rowenta X-Clean 4 is a versatile cordless floor washer designed to simplify your cleaning routine. This innovative device combines vacuuming and washing functions into a single pass, ensuring thorough cleaning of various hard floor types, including wood, marble, laminate, and tiles. Its advanced features, such as automatic dirt detection and self-propulsion, provide an efficient and effortless cleaning experience.

With a high autonomy of up to 50 minutes, the X-Clean 4 is capable of cleaning large areas (up to 350 m²) on a single charge, making it ideal for comprehensive home cleaning. The dual tank system ensures that you always clean with fresh water, while the automatic self-cleaning system maintains the device's hygiene and performance.

Figure 1.1: The Rowenta X-Clean 4 cordless floor washer shown with its included accessories, including an extra soft roller, side brush, filters, charger, and cleaning base.

2. Safety Instructions

Please read all safety instructions carefully before using the appliance. Failure to follow these instructions may result in electric shock, fire, or serious injury.

• Ensure the power supply voltage matches the voltage specified on the charger.
• Do not immerse the appliance, charger, or battery in water or other liquids.
• Keep hair, loose clothing, fingers, and all parts of the body away from openings and moving parts.
• Use only Rowenta recommended attachments and spare parts.
• Do not use the appliance to pick up flammable or combustible liquids, or hot ashes.
• Always unplug the charger from the outlet before cleaning or performing maintenance.
• Store the appliance indoors in a dry place.
• This appliance is for household use only.

3. Package Contents

Upon opening the package, please verify that all components are present and in good condition:

• Rowenta X-Clean 4 Cordless Floor Washer Main Unit
• Soft Roller Brush (pre-installed)
• Additional Soft Roller Brush
• Side Brush
• Filters (pre-installed and/or spare)
• Charging Adapter
• Charging and Self-Cleaning Base
• Cleaning Brush

Figure 3.1: The Rowenta X-Clean 4 product packaging, indicating the contents and features.

4. Assembly

Assembling your Rowenta X-Clean 4 is quick and straightforward:

1. Carefully remove all components from the packaging.
2. Insert the handle into the main body of the appliance until it clicks securely into place.
3. Ensure the clean water tank and dirty water tank are correctly seated in their respective compartments.
4. Place the appliance on its charging and self-cleaning base.

5. Setup

5.1. Charging the Battery

Before first use, fully charge the appliance. Connect the charging adapter to the charging base and plug it into a wall outlet. Place the X-Clean 4 on the charging base. The battery indicator on the display will show the charging status. A full charge provides up to 50 minutes of cleaning autonomy.

Figure 5.1: Illustration of the X-Clean 4's battery cells, highlighting its extended autonomy of up to 50 minutes for cleaning large areas.

5.2. Filling the Clean Water Tank

Locate the clean water tank (usually the upper tank). Remove it from the appliance and open the cap. Fill the tank with clean tap water up to the MAX fill line. You may add a small amount of non-foaming floor cleaning solution if desired, specifically designed for floor washers. Close the cap securely and reinsert the tank into the appliance.

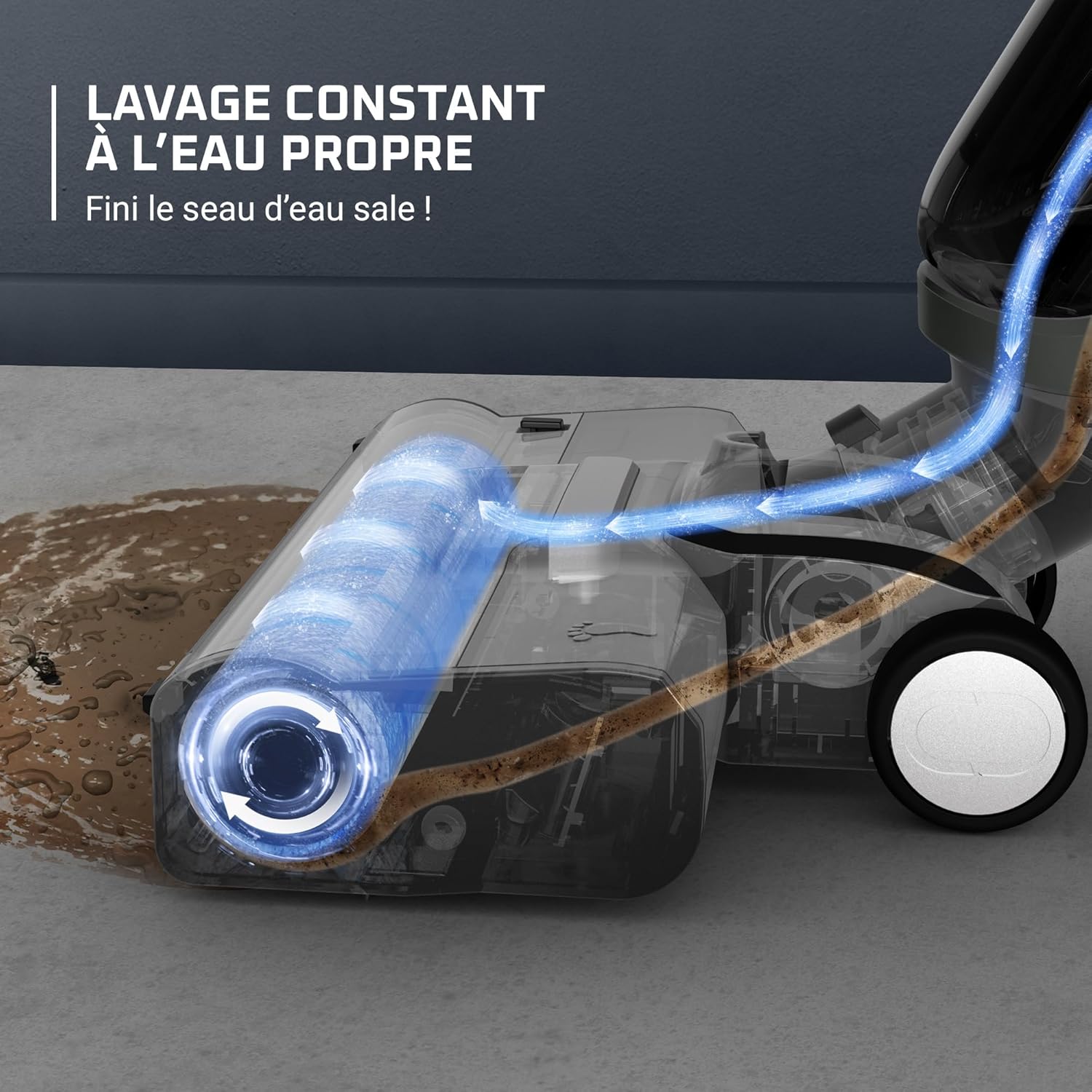

Figure 5.2: Diagram illustrating the clean water flow from the upper tank, through the cleaning head, and the collection of dirty water into the lower tank.

6. Operating Instructions

6.1. Powering On and Selecting Mode

Press the power button on the handle to turn on the X-Clean 4. The intelligent display will illuminate. The appliance typically starts in 'Auto' mode, which automatically adjusts the roller rotation speed and water flow based on dirt detection. An 'Eco' mode may also be available for lighter cleaning and extended battery life.

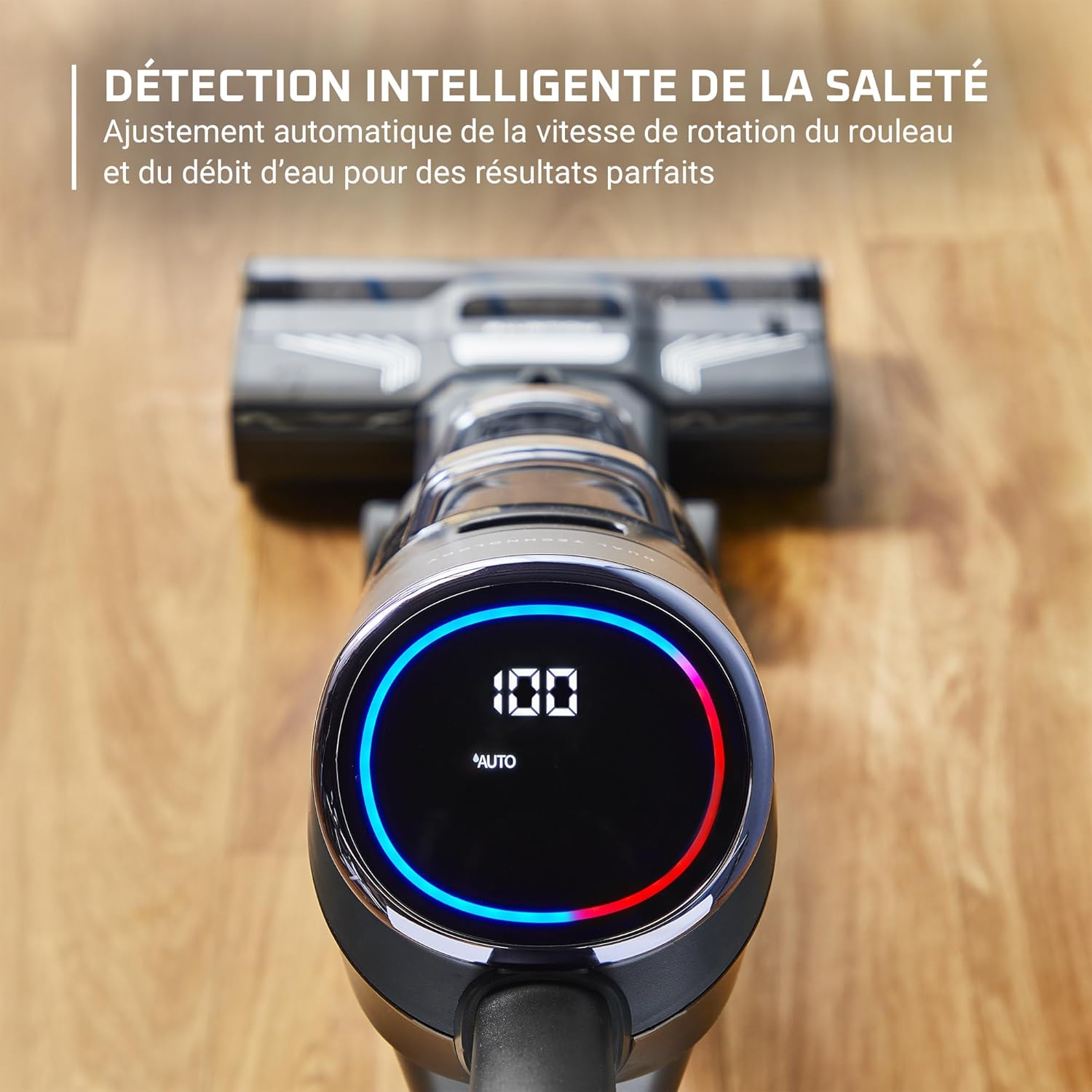

Figure 6.1: Close-up of the X-Clean 4's intelligent display, showing the automatic dirt detection feature. The display changes color (e.g., red for dirty, blue for clean) to indicate cleaning progress.

6.2. Cleaning Operation

Gently push the appliance forward to begin cleaning. The self-propelled roller system makes the X-Clean 4 feel lightweight and easy to maneuver. For optimal results, move the appliance in a backward motion to ensure the floor is left with minimal moisture.

• 2-in-1 Cleaning: The X-Clean 4 vacuums and washes simultaneously, effectively removing both solid debris and liquid spills in one pass.
• Smart Dirt Detection: The appliance's sensors detect the level of dirt on the floor and automatically adjust its cleaning power for perfect results.

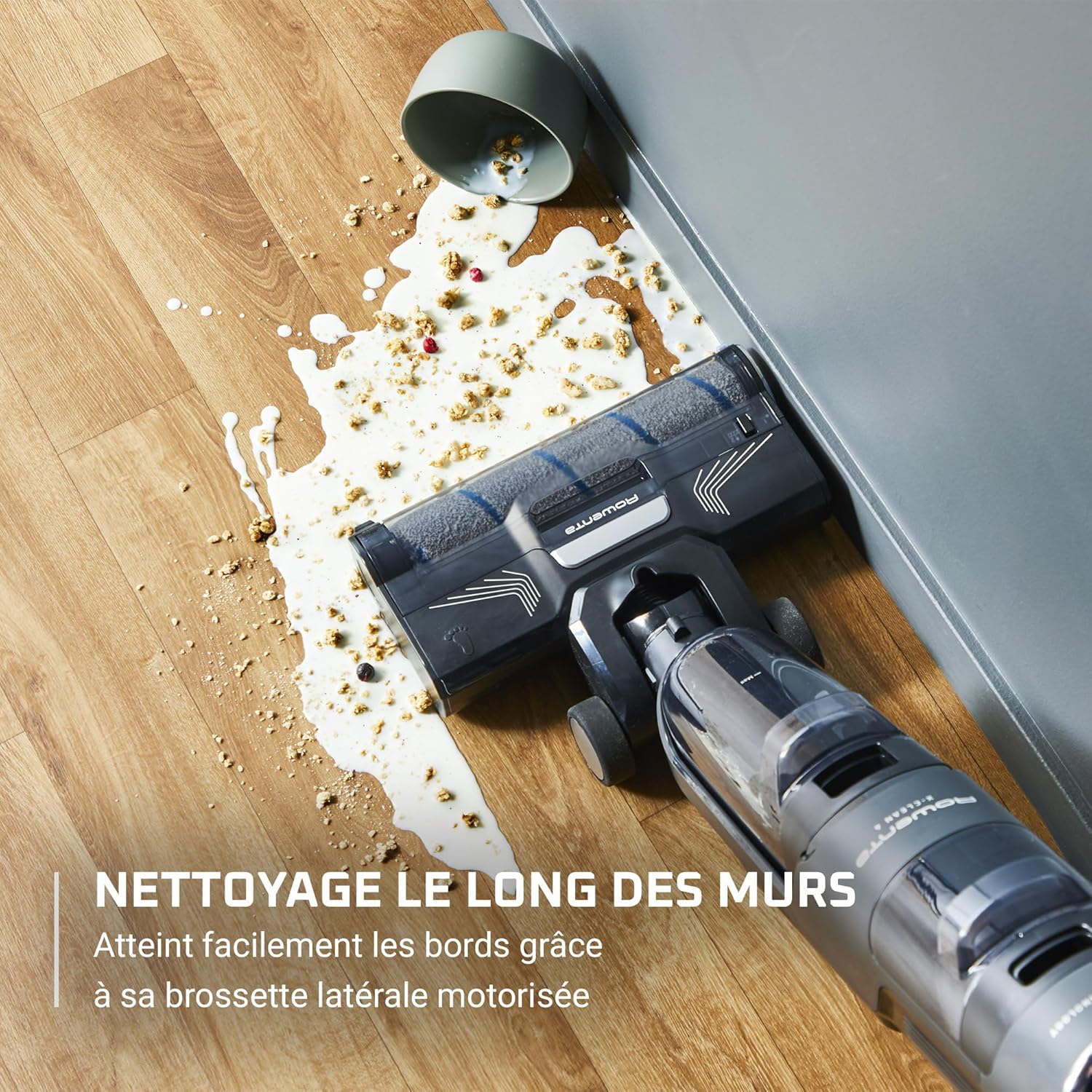

• Edge Cleaning: The integrated side brush allows for effective cleaning along walls and into corners.

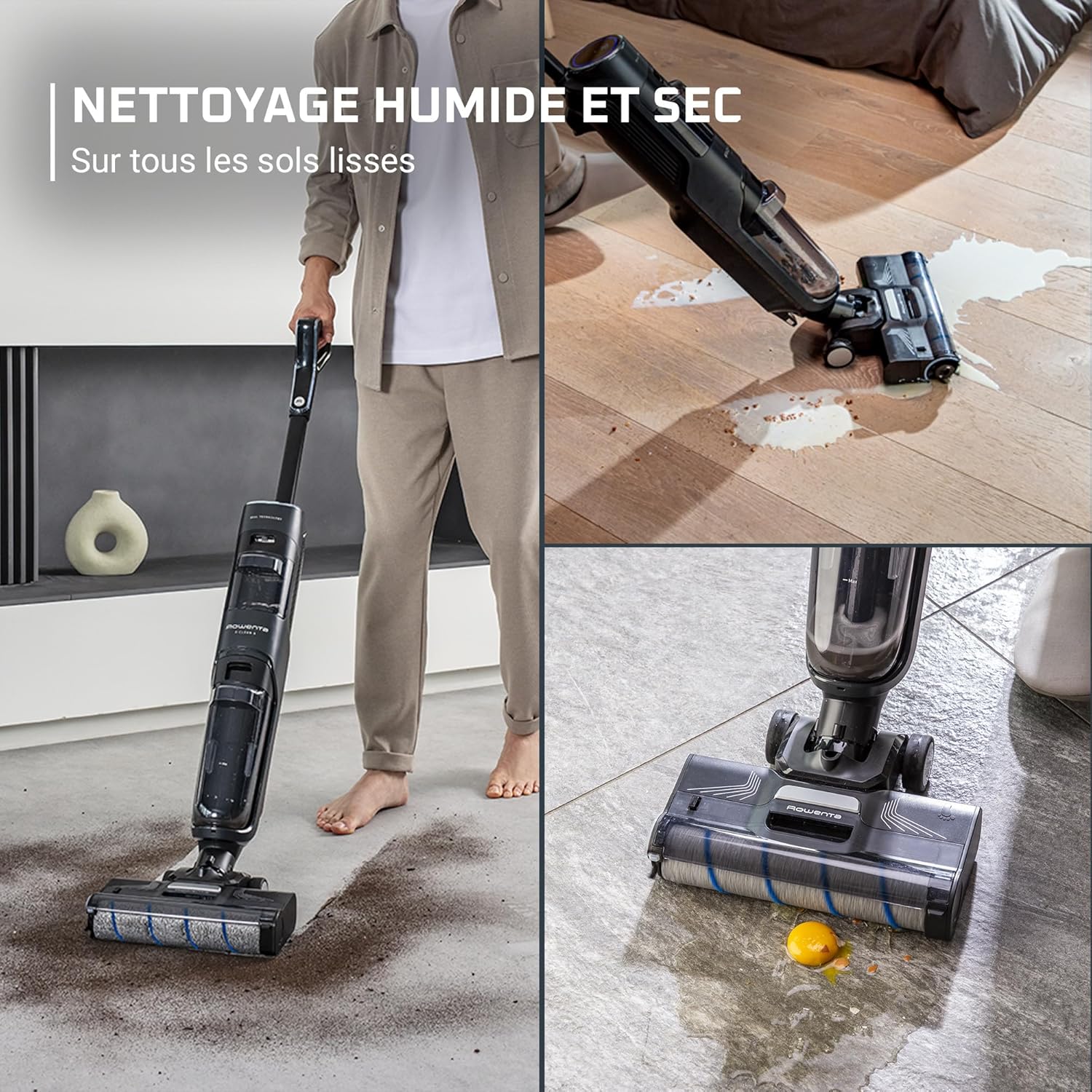

Figure 6.2: The X-Clean 4 demonstrating its 2-in-1 cleaning capability, effectively cleaning both wet spills and dry debris on a hard floor surface.

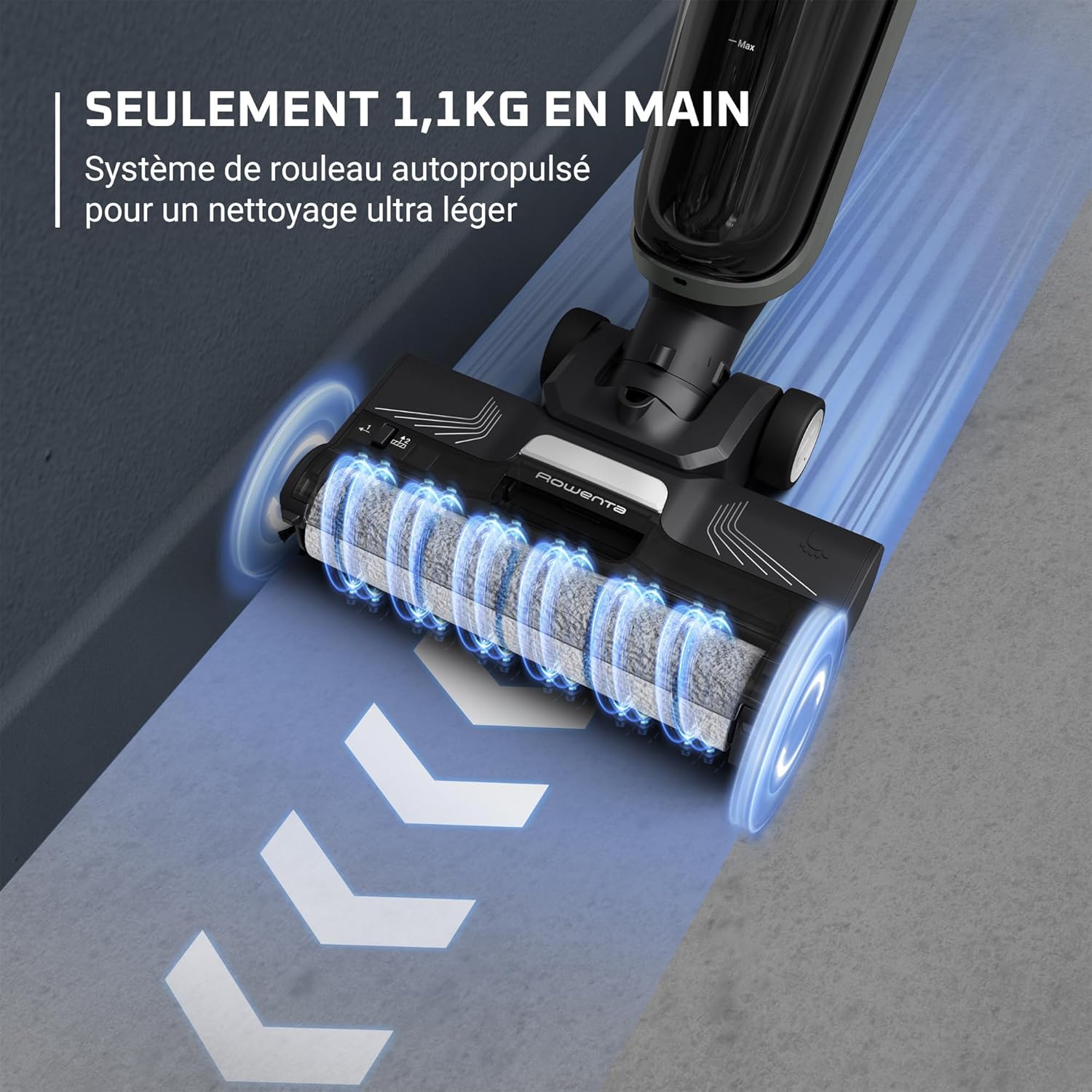

Figure 6.3: Visual representation of the X-Clean 4's self-propelled roller system, which significantly reduces the effort required for cleaning.

7. Maintenance

Regular maintenance ensures the longevity and optimal performance of your Rowenta X-Clean 4.

7.1. Automatic Self-Cleaning Cycle

After each use, place the appliance back on its charging base. Press the dedicated self-cleaning button (refer to your appliance's handle for exact button location). The X-Clean 4 will perform an automatic cleaning cycle of the roller brush and internal components, flushing out dirty water and debris. This helps prevent odors and maintains hygiene.

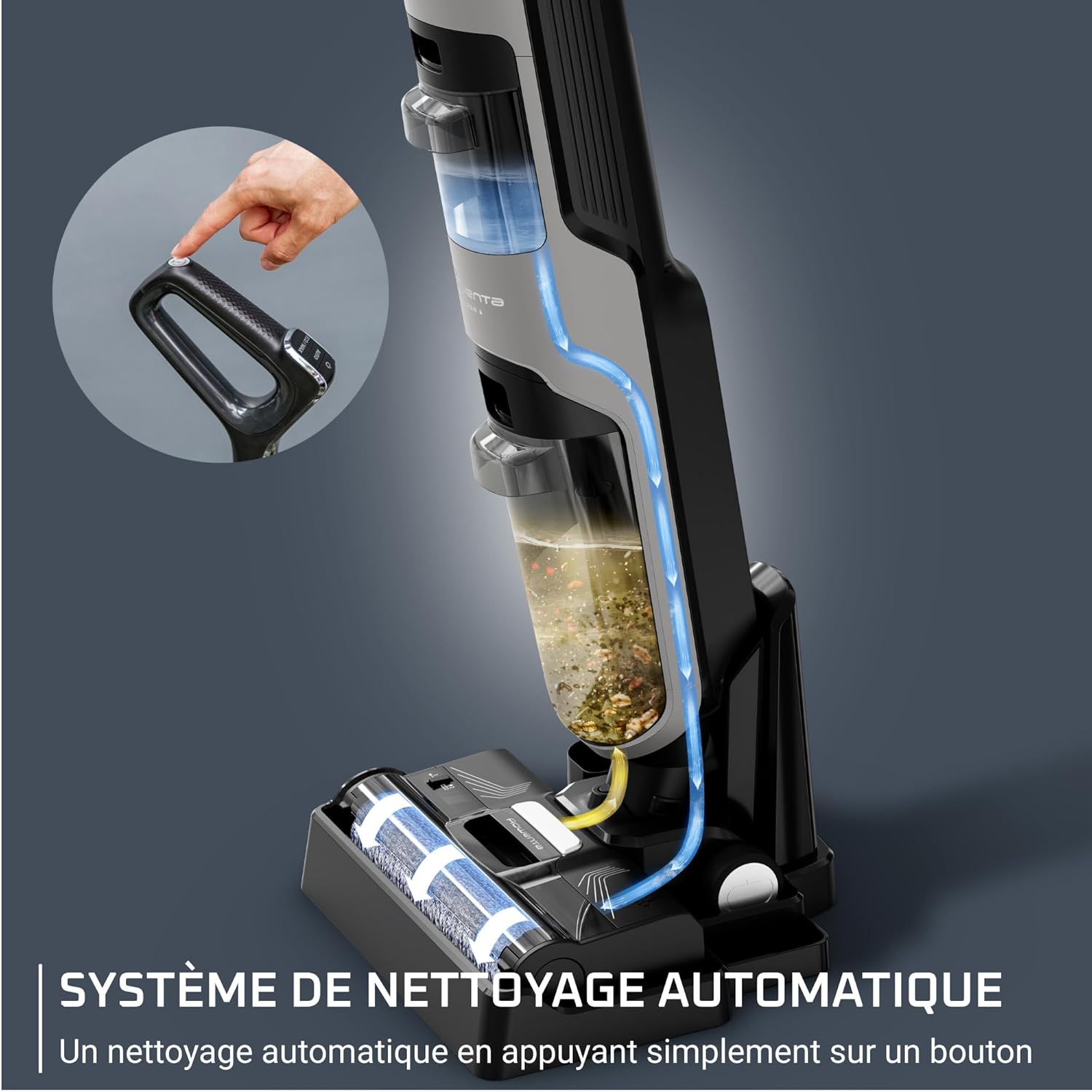

Figure 7.1: Illustration of the X-Clean 4's automatic cleaning system, activated by a simple button press, which cleans the roller and internal water paths.

7.2. Emptying and Cleaning the Dirty Water Tank

The dirty water tank (lower tank) should be emptied after each cleaning session or when the appliance indicates it is full. Remove the tank, open its lid, and dispose of the dirty water. Rinse the tank thoroughly with clean water and allow it to air dry before reinserting it.

7.3. Roller Brush and Filter Care

Even with the self-cleaning function, it is recommended to periodically remove the roller brush and rinse it under running water. Allow the roller to air dry completely (ideally for 24-48 hours) before reattaching it. The filters should also be removed and rinsed regularly. Ensure filters are completely dry before reinstallation to prevent mold or odors.

9. Specifications

Detailed technical specifications for the Rowenta X-Clean 4 Cordless Floor Washer (Model GZ5036WO):

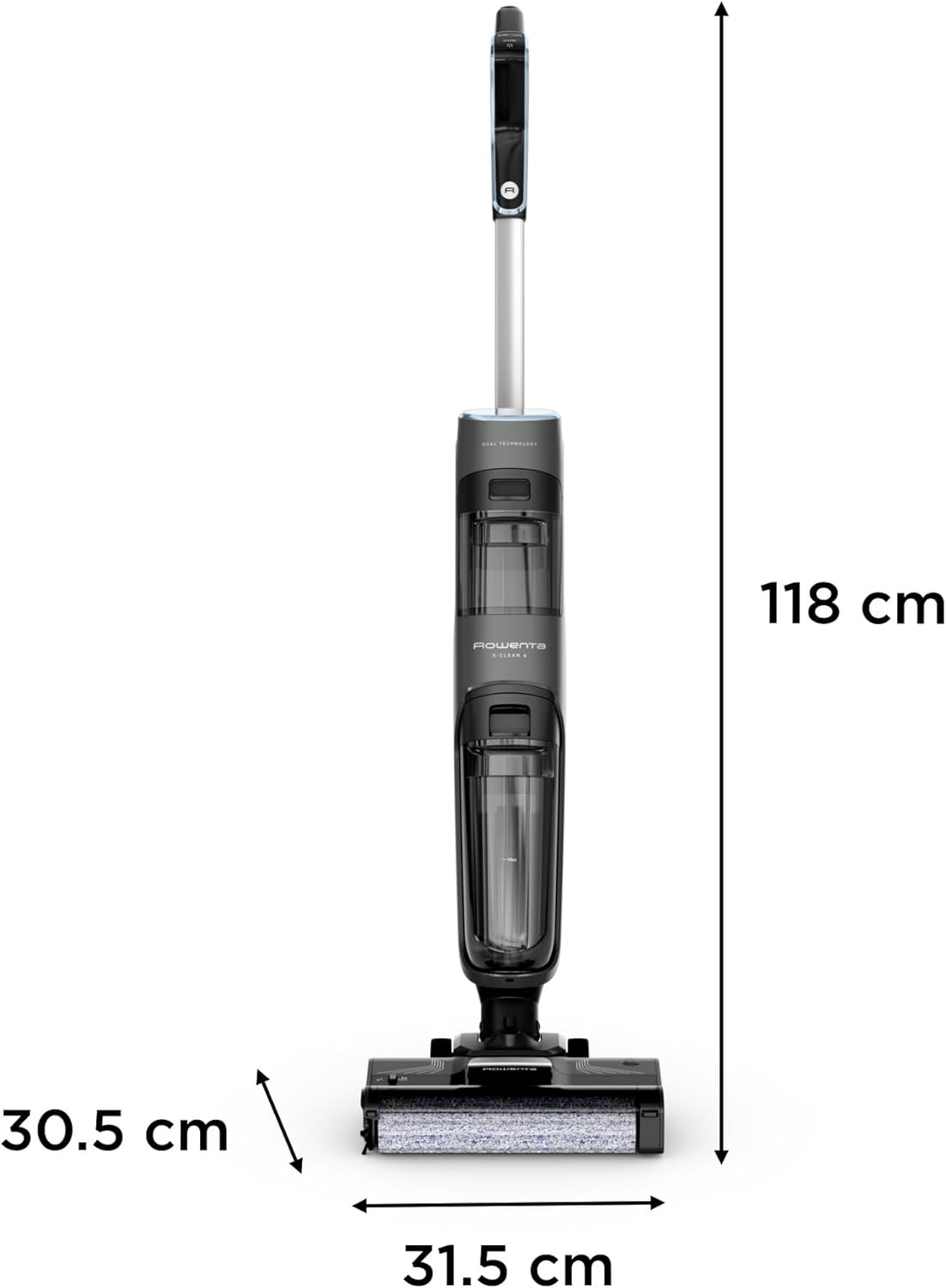

Figure 9.1: Diagram showing the key dimensions of the Rowenta X-Clean 4 cordless floor washer.
